Summary:

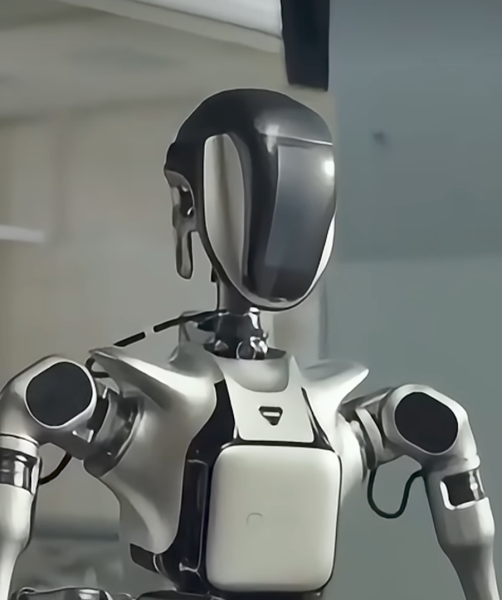

The GR-1 is a general-purpose humanoid robot developed by Fourier Intelligence, a Shanghai-based robotics company. Standing 165 cm tall and weighing 55 kg, GR-1 features up to 54 degrees of freedom, a walking speed of 5 km/h, and the ability to lift nearly its own weight. It is one of the first humanoid robots to enter mass production, with applications in rehabilitation, logistics, and AI research.



Editorial:



GR-1 represents a major milestone in humanoid robotics: a mass-producible, human-sized robot with real-world utility. Its Fourier Smart Actuators (FSA) integrate motor, driver, reducer, and encoder into compact modules, enabling smooth, coordinated movement across the body. The robot is capable of twisting, squatting, gripping, and navigating obstacles, making it suitable for both structured and semi-structured environments.



Powered by large language models (LLMs) and equipped with vision and sound sensors, GR-1 supports natural human-robot interaction. It’s designed to assist with physical tasks, provide companionship, and serve as a research platform for embodied AI. Fourier Intelligence has positioned GR-1 as a scalable solution for aging societies, rehabilitation centers, and smart service environments.



Specifications:



 Dimensions & Build

- Height: 165 cm

- Weight: 55 kg

- Design Intent: Human‑sized general‑purpose humanoid for assistive, industrial, and research applications

- Construction:

  - Lightweight, rigid humanoid frame

  - High‑torque joint modules (up to 300 Nm at the hip)

  - Modular design for scalable production

- Developer: Fourier Intelligence (Shanghai, China)

- Production Status: Among the first mass‑produced humanoids globally



Mobility

- Locomotion: Full bipedal walking

- Max Walking Speed: 5 km/h (≈1.38 m/s)

- Capabilities:

  - Obstacle avoidance

  - Stand‑up‑from‑fall

  - Stair walking

  - Running capability (short bursts)



Note: No incline capability, step height, or fall‑recovery timing published.



Degrees of Freedom

- Total DOF: 40–54 DOF (varies by configuration)

  - 40 DOF confirmed production spec

  - Up to 54 DOF referenced in broader GR‑1 documentation

- Arms: 7 DOF per arm

- Hands: Multi‑DOF dexterous hands (exact DOF not published)



Actuation

- Actuator Type: High‑torque electric actuators

- Peak Joint Torque: 300 Nm at the hip joint

- Key Capabilities:

  - Strong, smooth joint motion

  - Human‑scale lifting and manipulation

  - High‑precision control for assistive tasks



Note: No joint speed specifications published.



Manipulation

- Payload: 50 kg (can lift nearly its own weight)

- Capabilities:

  - Industrial and logistics handling

  - Rehabilitation and assistive tasks

  - Human‑robot collaborative operations



Note: No grip‑force or hand DOF breakdown published.



Perception & Sensors

Confirmed capabilities:

- Vision‑based perception

- Obstacle detection

- Environmental awareness for navigation

- AIROS onboard AI system (Fourier’s control stack)



Note: No camera resolution, depth sensor type, IMU specs, or tactile sensing published.



Compute & AI

- AI System: AIROS (Fourier’s onboard AI)

- Capabilities:

  - Real‑time motion planning

  - Adaptive gait control

  - Object recognition

  - Cloud‑connected updates



Note: No CPU/GPU/TOPS or memory specifications published.



Battery & Power

- Runtime: 2 hours (typical)

- Power Source: Electric



Note: No battery capacity or charge‑time data published.



Connectivity

- Onboard AIROS control stack

- Cloud‑connected diagnostics

- Real‑time control interfaces



Note: No Wi‑Fi/Bluetooth/5G details published.



Applications

- Rehabilitation and assistive therapy

- Logistics and warehouse tasks

- Industrial support

- Research and AI development

- Human‑robot collaboration



Pricing

- $125,000–$149,999 depending on configuration



Fourier has NOT published:



Mobility

- Step height

- Max incline

- Turning radius

- Fall‑recovery time



Manipulation

- Grip force

- Joint speed

- Detailed hand DOF breakdown



Sensors

- Camera resolution

- Depth sensor type

- Field of view

- Microphone array

- IMU specifications

- Tactile sensor layout



Compute

- Processor type

- GPU / accelerator

- TOPS

- Memory

- SDK/API availability



Battery &

Power

- Battery capacity

- Charge time

- Power draw



Environmental Ratings

- Operating temperature

- Humidity tolerance

- IP rating

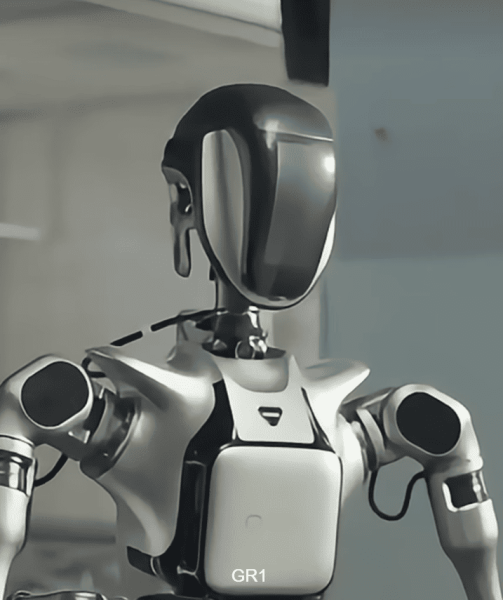

Image: @AIWorldRobots



Company Source:



Fourier Intelligence – Official GR-1 Product Page https://www.fftai.com/products-gr1.html



Key News & Coverage:



About GR-1 – Fourier General-Purpose Humanoid Robot Series

https://support.fftai.com/en/docs/GR-X-Humanoid-Robot/GR1/GR-1_Introduction/



Overview of the GR-1 series as a self-developed, commercially mass-producible humanoid robot with a highly bionic body, up to 44 degrees of freedom, and maximum joint peak torque of 230 N·m, designed as a carrier for general artificial intelligence.



About GR Series Robots – Fourier GR Documentation http://support.fftai.cn/main/en/concepts/about_gr1/
